Arrange multiple survival/CIF plots in a panel display

cifpanel() is the panel-building counterpart of cifplot(). It takes one or more model formulas (or, alternatively, one formula and several event-coding specifications) and returns a multi-panel figure, typically as a patchwork-compatible object. Most display options (axis labels, marks, style, ggsave options) are shared with cifplot(), but per-panel legends and number-at-risk tables are suppressed to avoid duplicated display. Typical use cases are:

Compare CIF (event 1) vs CIF (event 2) in a 1×2 layout.
Compare survival/CIF curves across strata with a shared legend and matched axes.
Display a plot with an enlarged y-axis inside a full-scale plot.

Usage

cifpanel(
  plots = NULL,
  formula = NULL,
  formulas = NULL,
  data = NULL,
  weights = NULL,
  subset.condition = NULL,
  na.action = na.omit,
  outcome.type = NULL,
  code.events = NULL,
  error = NULL,
  conf.type = NULL,
  conf.int = NULL,
  type.y = NULL,
  label.x = NULL,
  label.y = NULL,
  label.strata = NULL,
  order.strata = NULL,
  level.strata = NULL,
  limits.x = NULL,
  limits.y = NULL,
  breaks.x = NULL,
  breaks.y = NULL,
  add.conf = NULL,
  add.risktable = NULL,
  add.estimate.table = NULL,
  symbol.risk.table = NULL,
  font.size.risk.table = NULL,
  add.censor.mark = NULL,
  shape.censor.mark = NULL,
  size.censor.mark = NULL,
  add.competing.risk.mark = NULL,
  competing.risk.time = NULL,
  shape.competing.risk.mark = NULL,
  size.competing.risk.mark = NULL,
  add.intercurrent.event.mark = NULL,
  intercurrent.event.time = NULL,
  shape.intercurrent.event.mark = NULL,
  size.intercurrent.event.mark = NULL,
  add.quantile = NULL,
  level.quantile = NULL,
  rows.columns.panel = c(1, 1),
  inset.panel = FALSE,
  title.panel = NULL,
  subtitle.panel = NULL,
  caption.panel = NULL,
  tag.panel = NULL,
  title.plot = NULL,
  style = "classic",
  palette = NULL,
  linewidth = 0.8,
  linetype = FALSE,
  font.family = "sans",
  font.size = 8,
  legend.position = "top",
  legend.collect = TRUE,
  inset.left = 0.6,
  inset.bottom = 0.05,
  inset.right = 0.98,
  inset.top = 0.45,
  inset.align.to = c("panel", "plot", "full"),
  inset.legend.position = NULL,
  print.panel = FALSE,
  filename.ggsave = NULL,
  width.ggsave = NULL,
  height.ggsave = NULL,
  dpi.ggsave = 300,
  survfit.info = NULL,
  axis.info = NULL,
  visual.info = NULL,
  panel.info = NULL,
  style.info = NULL,
  inset.info = NULL,
  print.info = NULL,
  ggsave.info = NULL,
  engine = "cifplot",
  ...
)

Arguments

plots: Optional list of existing ggplot objects to be arranged into a panel. When plots is supplied, no new models are fitted; the plots are used as-is.
formula: A model formula specifying the time-to-event outcome on the left-hand side (typically Event(time, status) or Surv(time, status)) and, optionally, a stratification variable on the right-hand side. Unlike cifplot(), this function does not accept a fitted survfit object.
formulas: Optional list of formulas. When given, each formula defines one panel. This is the most common way to create “one variable per plot” panels.
data: A data frame containing variables in the formula.
weights: Optional name of the weight variable in data. Weights must be nonnegative.
subset.condition: Optional character string giving a logical condition to subset data (default NULL).
na.action: A function specifying the action to take on missing values (default na.omit).
outcome.type: Character string specifying the type of time-to-event outcome. One of "survival" (Kaplan-Meier) or "competing-risk" (Aalen-Johansen). If NULL (default), the function automatically infers the outcome type from the data: if the event variable has more than two unique levels, "competing-risk" is assumed; otherwise, "survival" is used. You can also use abbreviations such as "S" or "C". Mixed or ambiguous inputs (e.g., c("S", "C")) trigger automatic detection based on the event coding.
code.events: Optional numeric length-3 vector c(event1, event2, censoring). When supplied, it overrides code.event1, code.event2, and code.censoring (primarily used when cifpanel() is called or when panel.per.event = TRUE).
error: Character string specifying the method for SEs and CIs used internally. For "survival" without weights, choose one of "greenwood" (default), "tsiatis", or "if". For "competing-risk" without weights, choose one of "delta" (default), "aalen", or "if". SEs and CIs based on influence functions ("if") is recommended for weighted analysis.
conf.type: Character specifying the method of transformation for CIs used internally (default arcsine-square root).
conf.int: Numeric two-sided level of CIs (default 0.95).
type.y: Character string specifying the y-scale. For survival/CIF curves, "surv" implies survival probabilities and "risk" implies CIF (1-survival in simple survival settings). Specify "cumhaz" to plot cumulative hazard or "cloglog" to generate a complementary log-log plot. If NULL, a default is chosen from outcome.type or the survfit object.
label.x: Character x-axis label (default "Time").
label.y: Character y-axis label (default is chosen automatically from outcome.type and type.y, e.g. "Survival", "Cumulative incidence" or "Cumulative hazard").
limits.x: Numeric length-2 vector specifying x-axis limits. If NULL, it is set from the fitted object (typically c(0, max(time))).
limits.y: Numeric length-2 vector specifying y-axis limits. If NULL, it is set to c(0, 1) for probability-type outcomes.
breaks.x: Numeric vector of x-axis breaks (default NULL).
breaks.y: Numeric vector of y-axis breaks (default NULL).
add.conf: Logical; if TRUE, adds a CI ribbon (via ggsurvfit::add_confidence_interval()). Default TRUE.
add.censor.mark: Logical; if TRUE, draws censoring marks on each curve (via ggsurvfit::add_censor_mark()). Default TRUE.
shape.censor.mark: Integer point shape used for censoring marks (default 3).
size.censor.mark: Numeric point size used for censoring marks (default 2).
add.competing.risk.mark: Logical; if TRUE, draws time marks for the competing event (event 2). If no times are supplied via competing.risk.time, the function tries to extract them automatically from the data. Default FALSE.
competing.risk.time: A named list of numeric vectors. Each name must correspond to a strata label, and its numeric vector gives the times at which the competing event occurred in that stratum. Typically left as list() and filled internally.
shape.competing.risk.mark: Integer point shape for competing-risk marks (default 16).
size.competing.risk.mark: Numeric point size for competing-risk marks (default 2).
add.intercurrent.event.mark: Logical; if TRUE, overlays user-specified intercurrent-event times per stratum. Default FALSE.
intercurrent.event.time: A named list of numeric vectors for intercurrent events (names must match strata labels).
shape.intercurrent.event.mark: Integer point shape for intercurrent-event marks (default 1).
size.intercurrent.event.mark: Numeric point size for intercurrent-event marks (default 2).
add.quantile: Logical; if TRUE, adds a quantile reference line (via ggsurvfit::add_quantile()). Default FALSE.
level.quantile: Numeric quantile level to be shown (default 0.5 for the median).
rows.columns.panel: Optional integer vector c(nrow, ncol) controlling the layout of the panel returned by the panel modes. If NULL, an automatic layout is determined from the number of subplots.
inset.panel: Logical. If FALSE (default), all panels are arranged in a regular grid using patchwork::wrap_plots() and plot_layout(). If TRUE, the function switches to “inset mode”: the first plot becomes the main plot and the second plot (only the second) is drawn on top of it as an inset. Additional plots beyond the second are ignored in inset mode. Use grid mode to display more than two panels (inset.panel = FALSE).
title.panel, subtitle.panel, caption.panel: Character annotations applied to the whole panel layout (not to individual plots). These are passed to patchwork::plot_annotation() and are useful for creating figure-like outputs (title + subfigures + caption).
tag.panel: Passed to patchwork::plot_annotation() to auto-label individual panels (e.g. "A", "B", "C"). Typical values are "A", "1", or "a". See ?patchwork::plot_annotation.
title.plot: Character vector of titles for each panel in the order they are drawn. Length-1 values are recycled to all panels. In inset mode, the first element refers to the main plot and the second (if present) to the inset.
style: Character choosing the base plot style: "classic", "bold", "framed", "grid", "gray" or "ggsurvfit" (default "classic"). Abbreviations such as "C", "B", "F", or "G" are also accepted.
palette: Optional character vector specifying the color palette to use across strata.
linewidth: Optional numeric specifying the line width of curve (default 0.8).
linetype: Optional logical using different line types of curve (default FALSE).
font.family: Character specifying the font family: "sans", "serif", or "mono" (default "sans").
font.size: Integer specifying the base font size (default 12).
legend.collect: Logical; if TRUE, try to collect a single legend for all panels (passed to patchwork). Default TRUE.
inset.left, inset.bottom, inset.right, inset.top: Numeric values in the range [0, 1] that define the inset box as fractions of the reference area. inset.left / inset.right control the horizontal position, inset.bottom / inset.top control the vertical position. Values are interpreted as “from the left/bottom” of the reference. For example, inset.left = 0.4, inset.right = 1.0 draws the inset over the right 60% of the reference area.
inset.align.to: Character string specifying the coordinate system for the inset box. One of "panel" (default; the box is placed relative to the panel area, i.e. the plotting region excluding outer titles/margins), "plot" (relative to the entire plot area, including axes and titles of the main plot), or "full" (relative to the full patchwork canvas). This argument is passed to patchwork::inset_element().
inset.legend.position: Optional legend position for the inset plot only. If NULL (default), the inset plot keeps whatever legend position was defined for it (often this means a legend will also be inset). Set, for example, "none" to hide the legend inside the inset, while still showing the main plot's legend.
print.panel: Logical. When TRUE, panel displays created internally are printed automatically in interactive sessions; otherwise they are returned invisibly for further modification (default FALSE).
filename.ggsave: Character; if non-NULL, save the plot to this file.
width.ggsave: Numeric width passed to ggplot2::ggsave() (default 6).
height.ggsave: Numeric height passed to ggplot2::ggsave() (default 6).
dpi.ggsave: Numeric DPI passed to ggplot2::ggsave() (default 300).
survfit.info, axis.info, visual.info, panel.info, style.info, print.info, ggsave.info, inset.info: Internal lists used for programmatic control. Not intended for direct user input.
...: Additional arguments forwarded to the internal cifplot_single() calls that build each panel. Use this to pass low-level options such as competing.risk.time, intercurrent.event.time, or styling overrides.

Value

A "cifpanel" object (returned invisibly), which is a list with at least the following elements:

list.plot: a list of ggplot objects, one per panel
patchwork: a patchwork object representing the composed panel
plot: reserved for backwards compatibility (always NULL)
metadata fields mirroring those in cifplot() (such as information on the fitted curves and display settings)

When print.panel = TRUE, the patchwork object is printed in interactive sessions in addition to being returned.

Details

Overview

cifpanel() composes multiple survival/CIF plots into a single figure. For each panel, it estimates curves via cifcurve() and renders them with cifplot(). You can supply a single formula reused across panels or a list in formulas (one per panel). When both are provided, formulas wins.

Outcome type & event coding

Use outcome.type to set per-panel estimator ("survival"=KM, "competing-risk"=AJ).
Alternatively, pass code.events per panel to infer the type:
- length 2 = survival: c(event1, censor)
- length 3 = competing-risk: c(event1, event2, censor)
If outcome.type is NULL, the function infers each panel from its code.events[[i]] length. When both are given, outcome.type takes precedence.

Panel-wise vs shared arguments

Panel layout is specified by length-2 vector rows.columns.panel. This function can also automatically determine the panel count in the following order: (1) if plots is supplied, its length defines the number of plots, (2) else if formulas is supplied, its length defines the number of plots, (3) else if code.events is supplied, its length defines the number of plots together with formula, and (4) otherwise rows.columns.panel=c(1,1).

Many arguments accept a scalar (recycled to all panels) or a list/vector (one entry per panel). Precedence: panel-wise explicit values > shared scalar > internal defaults. Length-1 inputs are recycled.

Grid vs inset composition

Grid mode (inset.panel = FALSE, default): plots are arranged with patchwork::wrap_plots() and plot_layout(). If legend.collect = TRUE, legends are collected across panels where possible.
Inset mode (inset.panel = TRUE): the second plot is overlaid into the first using patchwork::inset_element(). Only the first two plots are used; extra plots are ignored. Control the inset box with inset.left, inset.bottom, inset.right, inset.top, and its reference frame via inset.align.to ("panel", "plot", or "full").

Advanced panel controls (forwarded to `cifplot()`)

The following arguments allow per-panel control by supplying vectors/lists, or shared control by supplying scalars. They are forwarded to cifplot().

formula or formulas: one formula or a list of formulas; each entry creates a panel.
data, outcome.type, code.events, type.y: recycled across panels unless a list is supplied for per-panel control.
rows.columns.panel: specification of grid layout by c(rows, cols).
inset.panel: inset layout.
title.panel, subtitle.panel, caption.panel, title.plot: overall titles and captions.
tag.panel: panel tag style (e.g., "A", "a", "1").
label.x, label.y, limits.x, limits.y, breaks.x, breaks.y: shared axis control unless a list is supplied for per-panel control.

Scale & labels

Argument	Meaning	Default
`type.y`	`"risk"` (CIF y-axis) or `NULL` (survival).	inferred
`label.x`, `label.y`	Axis labels per panel.	auto
`label.strata`	Legend labels per panel.	from data
`limits.x`, `limits.y`	Axis limits `c(min, max)`.	auto
`breaks.x`, `breaks.y`	Axis breaks (forwarded to `breaks.x`/`breaks.y`).	auto

Plot layers (toggles)

Argument	Effect	Default
`add.conf`	CI ribbon.	`TRUE`
`add.censor.mark`	Censor marks.	`TRUE`
`add.competing.risk.mark`	Marks for event2 at supplied times.	`FALSE`
`add.intercurrent.event.mark`	User-specified intercurrent marks.	`FALSE`
`add.quantile`	Quantile reference line(s).	`FALSE`

(Time marks inputs such as competing.risk.time / intercurrent.event.time can be given via ... if needed; names must match strata labels.)

Legend & annotations

legend.position: "top", "right", "bottom", "left", or "none" (applies to all panels).
Grid mode: legend.collect = TRUE attempts a shared legend.
Panel annotations: title.panel, subtitle.panel, caption.panel.
Tagging: tag.panel is passed to patchwork::plot_annotation().
In inset mode, title.plot = c(title_base, title_inset) labels the two plots.

Export (optional)

If filename.ggsave is non-NULL, the composed panel is saved with ggsave() using width.ggsave, height.ggsave, and dpi.ggsave. Otherwise, the function returns objects without saving.

Notes

Mixed panel types are supported (e.g., AJ in panel 1; KM in panel 2).
If formulas is shorter than the grid capacity, empty slots are ignored.
When supplying vectors/lists per panel, their lengths must match the number of panels; length-1 inputs are recycled; otherwise an error is thrown.
For CIF displays, set type.y = "risk". For survival scale, use type.y = NULL or = "surv". For ADaM-style data, use code.events=c(0,1) or code.event1 = 0, code.censoring = 1.
Additional graphical options (e.g., theme) can be added post-hoc to each element of list.plot or to the composed patchwork.

Lifecycle

Examples

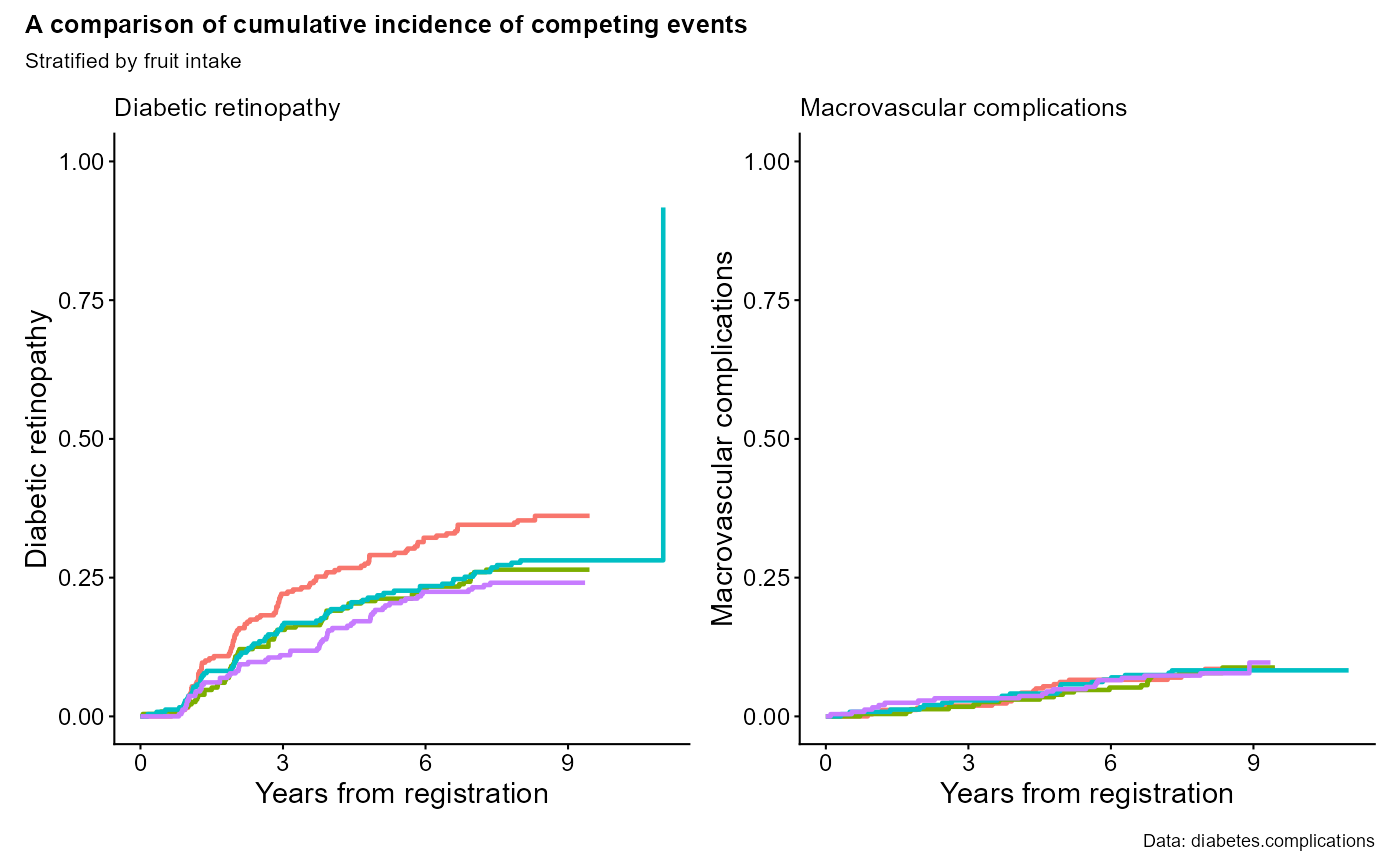

data(diabetes.complications)
output1 <- cifpanel(
  title.panel = "A comparison of cumulative incidence of competing events",
  rows.columns.panel = c(1,2),
  formula = Event(t, epsilon) ~ fruitq,
  data = diabetes.complications,
  outcome.type = "competing-risk",
  code.events = list(c(1,2,0), c(2,1,0)),
  label.y = c("Diabetic retinopathy", "Macrovascular complications"),
  label.x = "Years from registration",
  subtitle.panel = "Stratified by fruit intake",
  caption.panel  = "Data: diabetes.complications",
  title.plot = c("Diabetic retinopathy", "Macrovascular complications"),
  legend.position = "bottom",
  legend.collect=TRUE
)
print(output1)


output2 <- cifplot(Event(t,epsilon) ~ fruitq,
                   data = diabetes.complications,
                   outcome.type="competing-risk",
                   code.event1=2,
                   code.event2=1,
                   add.conf = FALSE,
                   add.risktable = FALSE,
                   label.y="CIF of macrovascular complications",
                   label.x="Years from registration")
output3 <- cifplot(Event(t,epsilon) ~ fruitq,
                   data = diabetes.complications,
                   outcome.type="competing-risk",
                   code.event1=2,
                   code.event2=1,
                   add.conf = FALSE,
                   add.risktable = FALSE,
                   label.y="",
                   label.x="",
                   limits.y=c(0,0.15))
#> Warning: Some point estimates fall outside `limits.y` = [0, 0.15].

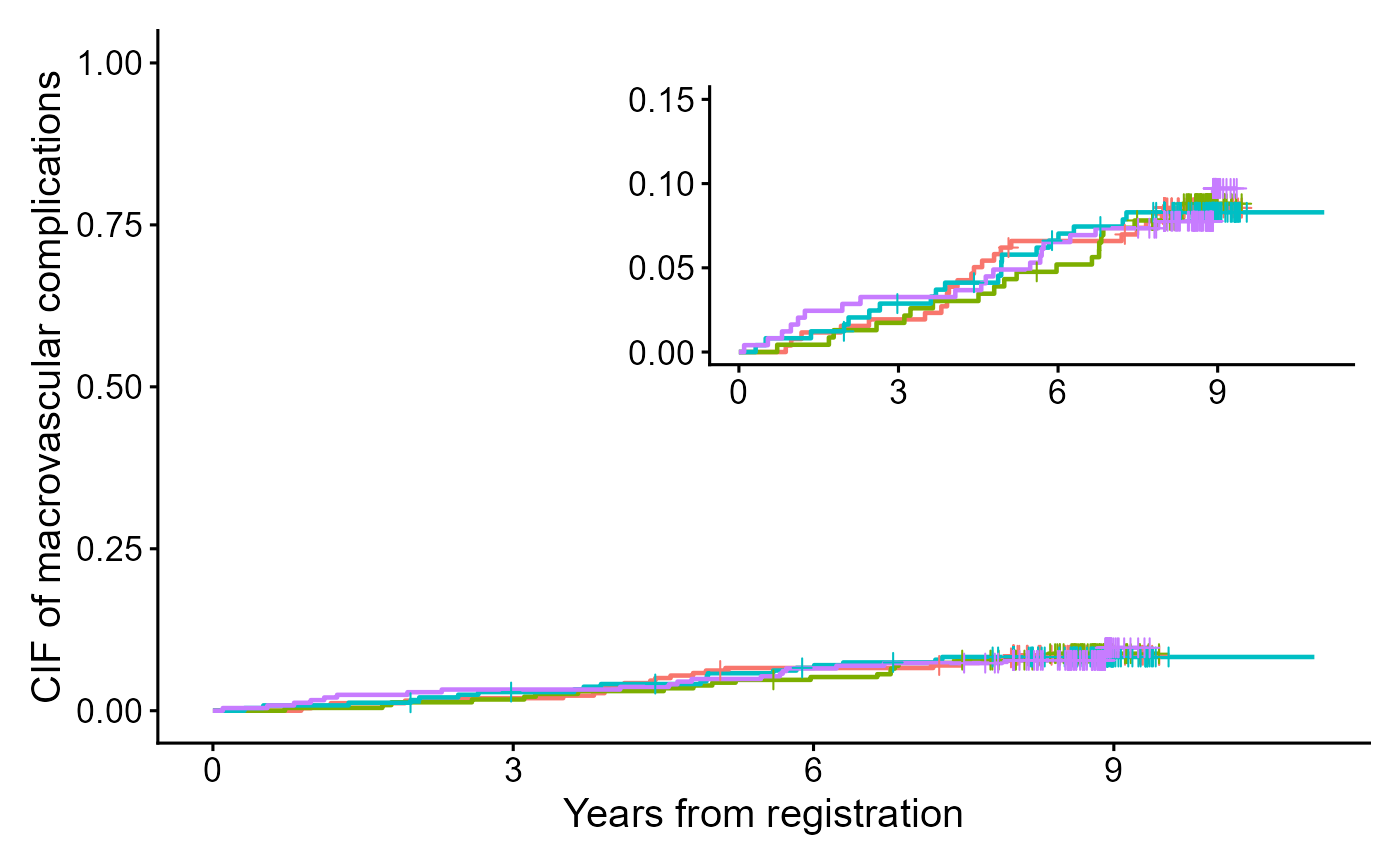

output4 <- list(a = output2$plot, b = output3$plot)
output5 <- cifpanel(plots = output4,
         inset.panel = TRUE,
         inset.left = 0.40, inset.bottom = 0.45,
         inset.right = 1.00, inset.top = 0.95,
         inset.align.to = "plot",
         inset.legend.position = "none",
         legend.position = "bottom")
print(output5)
